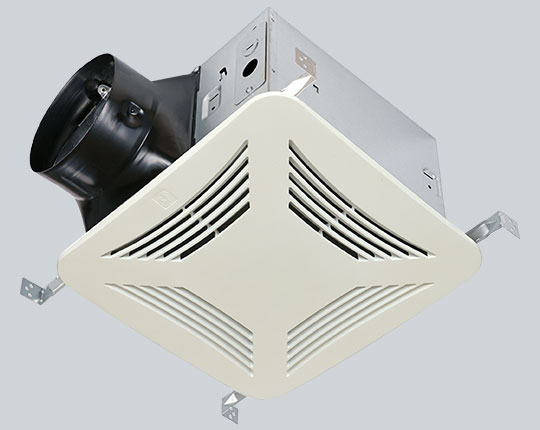

PC110XP model

What's New in the PCXP Series?

The new Premium CHOICE XP (PCXP) series is built for today's demanding requirements featuring seamless Plug-&-Play integration and a redesigned blower for a quiet, energy efficient performance.

New Product Features

  • Extremely Energy Efficient
  • Higher Airflow
  • Up to 70% Quieter
  • Increased Static Pressure Capabilities

To locate the new PCXP product line and accessories find the purple plus sign () to the right of the Part ID.

Overview

Features & Construction

  • Extremely quiet operation 0.3 to 1.1 sones
  • Totally enclosed condenser motor for long life
  • Motor rated for 30,000 hours continuous on
  • 120V/60Hz, 230V/60Hz or 230V/50Hz motors
  • Robust steel housing
  • Attractive, sturdy grille

Certifications & Listings

Please see the Submittal of each PC model for the certified performance data.

  • AMCA Air & Sound Certified
  • CALGreen (Title 24 Compliant)
  • cETLus Listed (UL 555C standard)
  • ENERGY STAR® qualified
  • HVI Certified
  • UL Listed (230V Models ONLY)

Applications

  • Residential Bathroom Exhaust
    Improve IAQ by removing excess humidity, odors, and VOCs from the residential bathroom.
  • Commercial Bathroom Exhaust
    Improve IAQ by removing excess humidity, odors, and VOCs from the commercial bathroom.
  • Local Exhaust
    Local demand-controlled exhaust is intended to remove contaminants from kitchens and bathrooms.
  • Dwelling Unit Ventilation
    Exhaust air at a continuous rate to provide fresh air to the dwelling unit.

Product Specifications

HVI Performance Data

Part ID Duct (in) Airflow(CFM) Sones @ 0.1" SP Frequency (Hz) Voltage (V) Max Power (W) Efficacy @ 0.1" SP (CFM/Watts) Max Current (Amps) Nominal Speed (RPM)
0.1 0.25
PC50X 4 50 38 0.9 60 120 17 3.5 0.2 1,140
PC80XP 4 80 62 0.7 60 120 25 3.7 0.25 915
6 90 67 0.4 4.0
PC110XP 4 100 76 0.9 60 120 30 3.8 0.35 930
6 120 85 0.3 4.3
PC150XP 6 150 115 0.5 60 120 38 4.6 0.35 1,015

The purple plus sign () is used to denote a new product of the PCXP series.

Dimensions

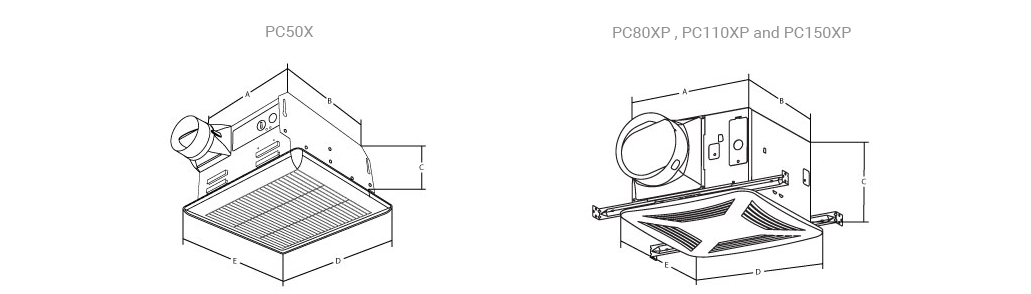

Dimensional drawing for the AC motor models.
Part ID A B C D E Avg. Ship Weight (lbs)
PC50X 9 9 5.75 11.813 11.438 7
PC80XP 11.375 10.5 7.625 14 13 11
PC110XP 11.375 10.5 7.625 14 13 11
PC150XP 11.375 10.5 7.625 14 13 11

Dimensions A through E are displayed in inches and rounded to the nearest thousandth of an inch. The purple plus sign () is used to denote a new product of the PCXP series.

Options & Accessories

Contractor Pack

For convenient installation of specific sizes, the PC models are available in packs of four with all the parts needed for the fan to be installed by the contractor after the drywall and painting are complete.

Description Literature
Housing Kit The contractor kit includes the fan housing and hanger brackets.
PCH
PC80X and PC110X contractor pack housing (4-pack).

PCHP
PC80XP and PC110XP contractor pack housing (4-pack). Coming Soon!

Motor and Grille Kit The contractor kit includes the blower assembly and standard grille.
PC80F
PC80X contractor pack motor and grille (4-pack).

PC80XFP
PC80XP contractor pack motor and grille (4-pack). Coming Soon!

PC110F
PC110X contractor pack motor and grille (4-pack).

PC110XFP
PC110XP contractor pack motor and grille (4-pack). Coming Soon!


The purple plus sign () is used to denote a new product of the PCXP series.

Plug-&-Play Grilles

Image Description Literature
Metal Grille
Image of metal grille.

PCMG
13" x 14" Metal Grille


Metal Grille for PCXP Series
Image of metal grille.

PCMGP
13" x 14" Metal Grille


Lighted Grille Kit
Image of lighted grille kit with CFL bulb. PCLK
CFL Lighted Grille Kit
Submittal
Image of lighted grille kit with LED array. PCLEDK
LED Lighted Grille Kit
Submittal
Lighted Grille Kit for PC50X
Image of lighted grille kit with CFL light bulb. PCVLK
CFL Lighted Grille Kit
Submittal
Image of lighted grille kit with LED array. PCVLEDK
LED Lighted Grille Kit
Submittal
Lighted Grille Kit for PCXP Series
Image of lighted grille kit with CFL light bulb. PCLKP
CFL Lighted Grille Kit

Image of lighted grille kit with LED array. PCLEDKP
LED Lighted Grille Kit
Submittal
Sensing Grille Kit
Image of motion sensing grille kit. PCMK
Motion Sensing Grille Kit
Submittal
Image of motion sensing lighted grille kit. PCLMK
Motion Sensing Lighted Grille Kit
SubmittalIOM
Image of motion and humidity sensing grille kit. PCMHK
Motion and Humidity Sensing Grille Kit
IOM
Image of motion and humidity sensing lighted grille kit. PCLMHK
Motion and Humidity Sensing Lighted Grille Kit
IOM
Sensing Grille Kit for PCXP Series
Image of motion and humidity sensing grille kit. PCMHKP
Motion and Humidity Sensing Grille Kit

Image of motion and humidity sensing lighted grille kit. PCLMHKP
Motion and Humidity Sensing Lighted Grille Kit


The purple plus sign () is used to denote a new product of the PCXP series.

Plug-&-Play Modules

Image Description Literature
Modules
Image of a humidity sensor Plug-&-Play option. PCHS
Humidity Sensor
SubmittalIOM
Image of a speed control Plug-&-Play option. PCSC
Speed Control
SubmittalIOM
Image of a VOC/humidity sensor Plug-&-Play option. PCIAQS
VOC/Humidity Sensor
SubmittalIOM
Image of a bluetooth® Plug-&-Play option. PCBTS
Bluetooth® Wireless Speaker
IOM
Modules for PCXP Series
Image of the new humidity sensor Plug-&-Play option. PCHSP
Humidity Sensor
Submittal
Image of the new speed control Plug-&-Play option. PCSCP
Speed Control

Image of the new VOC/humidity sensor Plug-&-Play option. PCIAQSP
VOC/Humidity Sensor


The purple plus sign () is used to denote a new product of the PCXP series.

Radiation Damper and Kits

Radiation Damper (PCRD, PCRD-P2, PCRD-P2P, & PCVRD)

  • 3-hour rating ceiling radiation dampers
  • Ceramic fiber with fiberglass cover fire blanket
  • Roll-formed frame 22 g. galvanized steel
  • PCRD-P2 is an extended radiation damper to allow lighted grille fit
  • cETLus Listed
Kit Radiation Damper Grille
PCLKRD PCRD-P2 PCLK
PCLKRDP PCRD-P2P PCLKP
PCLEDKRD PCRD-P2 PCLEDK
PCLEDKRDP PCRD-P2P PCLEDKP
PCMKRD PCRD-P2 PCMK
PCLMKRD PCRD-P2 PCLMK
PCMHKRD PCRD-P2 PCMHK
PCMHKRDP PCRD-P2P PCMHKP
PCLMHKRD PCRD-P2 PCLMHK
PCLMHKRDP PCRD-P2 PCLMHKP
PCMGKRD PCRD PCMG
PCMGKRDP PCRD PCMGP
PCVLEDKRD PCVRD PCVLEDK

Legend = Included / = Not Included / = New Product of the PCXP Series

List of Products

Image Description Literature
Radiation Dampers
Image of the radiation damper. PCRD
Ceiling Radiation Damper for Lighted Grille
SubmittalRevit
Image of the radiation damper. PCVRD
Ceiling Radiation Damper for PC50X
SubmittalIOM
Radiation Dampers for PCXP Series
Image of the radiation damper. PCRD-P2P
Ceiling Radiation Damper for Lighted Grille

Radiation Damper Kits
Image of the PCMKRD radiation damper kit. PCMKRD
Ceiling Radiation Damper Kit with PCMK
Submittal
Image of the PCMHKRD radiation damper kit. PCMHKRD
Ceiling Radiation Damper Kit with PCMHK

Image of the PCLKRD radiation damper kit. PCLKRD
Ceiling Radiation Damper Kit with PCLK
Submittal
Image of the PCLEDKRD radiation damper kit. PCLEDKRD
Ceiling Radiation Damper Kit with PCLEDK
Submittal
Image of the PCLMKRD radiation damper kit. PCLMKRD
Ceiling Radiation Damper Kit with PCLMK
Submittal
Image of the PCLMHKRD radiation damper kit. PCLMHKRD
Ceiling Radiation Damper Kit with PCLMHK

Image of the PCMGKRD radiation damper kit. PCMGKRD
Ceiling Radiation Damper Kit with PCMG

Image of the PCVLEDKRD radiation damper kit. PCVLEDKRD
Ceiling Radiation Damper kit with PCVLEDK

Radiation Damper Kits for PCXP Series
Image of the PCMHKRDP radiation damper kit. PCMHKRDP
Ceiling Radiation Damper Kit with PCMHKP

Image of the PCLKRDP radiation damper kit. PCLKRDP
Ceiling Radiation Damper Kit with PCLKP

Image of the PCLEDKRDP radiation damper kit. PCLEDKRDP
Ceiling Radiation Damper Kit with PCLEDKP

Image of the PCLMHKRDP radiation damper kit. PCLMHKRDP
Ceiling Radiation Damper Kit with PCLMHKP

Image of the PCMGKRDP radiation damper kit. PCMGKRDP
Ceiling Radiation Damper Kit with PCMGP


The purple plus sign () is used to denote a new product of the PCXP series.

Wall Control Options

Image Description Literature
Image of 3-switch control. PC3S
3-Switch Control
Submittal
Image of the delay timer switch. FLTD-60
Fan/Light Delay Timer Switch
Submittal
Image of the rotary spring wound timer. SRT-30
Rotary Spring Wound Timer
Submittal
Image of the electronic push button timer. EPBT-60
Electronic Push Button Timer
Submittal
Image of the bathroom ventilation control. FT622
ASHRAE 62.2 Bath Fan Ventilation Control
Submittal
Image of the programmable fan timer. FT247
Programmable Fan Timer
Submittal

The purple plus sign () is used to denote a new product of the PCXP series.

Accessories

Image Description Literature
Image of the plastic louvered shutter. PER-W
Plastic Louvered Shutter
Submittal
Image of the aluminum exterior fixed grille. GRA
Aluminum Exterior Fixed Grille
Submittal
Image of the roof cap. RC
Roof Cap
Submittal
Image of the round, adjustable metal elbow. ME
Round Adjustable Metal Elbow
Submittal
Image of the duct connector. DC
Duct Connector

Image of the worm clamp. WC
Worm Clamp


The purple plus sign () is used to denote a new product of the PCXP series.
