PC110XP model most efficient 2021 energy star

What's New in the PCDXP Series?

The new Premium CHOICE XP (PCDXP) series is built for today's demanding requirements featuring seamless Plug-&-Play integration and a redesigned blower for a quiet, energy efficient performance.

New Product Features

  • Speed control, humidity sensor, motion sensor functionality built in (can be disabled)
  • Continuous low speed operation (optional) with auto boost to high speed based on humidity, motion, or manual override
  • AUTOFLO™ feature automatically senses real world static pressure and maintains CFM up to 0.5 in wc
  • 6” duct connector with backdraft damper
  • Galvanized steel construction
  • Extremely quiet (0.3 sones max) operation
  • Energy efficient (35 watts max)

auto flow

PCD80XH Model

PCD80XHP Model

The PCD80XHP model includes a built-in humidity sensing module to solve the poor indoor air quality (IAQ) within homes and multi-family residences. With the humidity sensing module attachment, the IAQ is greatly improved as the contaminants, and excess moisture is exhausted from the dwelling.

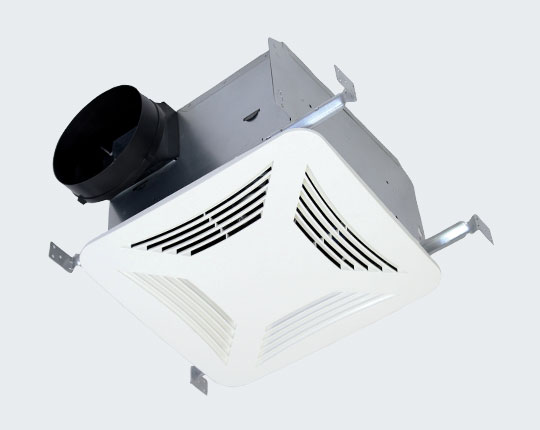

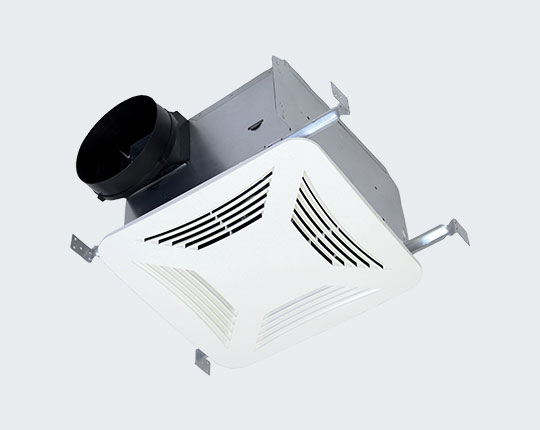

PCD110X Model

PCD110XP Model

Premium CHOICE DC motor models have a built-in switch and duct connector option that allows you to set the fan to the required airflow. This standard model comes with a speed control, humidity sensor, and motion sensor functionality built-in.

PCLPD100XHP Model

PCLPD100XHP Model

Premium CHOICE Low Profile Exhaust Fan with DC Motor is designed to fit in the smallest wall cavities, making it a versatile and convenient solution for Mixed-Use & Multi-Family applications. PCLPD100XHP utilizes a DC motor and AUTOFLO™ Technology to increase efficiency and lower energy costs.

Overview

Features & Construction

  • Extremely quiet operation 0.3 to 0.5 sones
  • Brushless DC motor for longer life
  • Motor rated for 60,000 hours continuous on
  • Robust steel housing
  • Attractive, sturdy grille

Optional Accessory

PCLPR4-3 4” Oval to 3” Round Reducer
The PCLPR4-3 is a 4” oval to 3” round duct reducer that can be used to quickly and easily connect 3” round duct to the PCLPD100XHP. This is a common duct size used with low profile bathroom exhaust fans installed in 2x4 walls.


Standard Features per Model

Part ID Built-In Control Grille
PCD80XHP Speed, Humidity & Time Delay Standard
PCD110XP Continuous Low Speed, Humidity, Time Delay, Motion, & AUTOFLO™ Standard
(Motion Grilles sold separately)
PCLPD100XHP Continuous Low Speed, Humidity, Time Delay & AUTOFLO™ Standard

Legend = Not Included

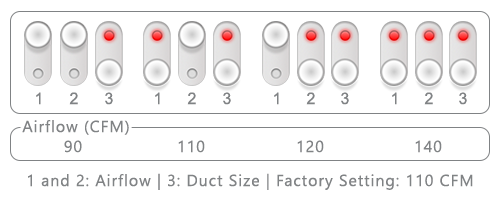

Toggle Switch Setting for the PCD110XP Models

The built-in control allows you to set the PCD110XP model to the required airflow. Use the diagram below to configure the fan to your specific needs.

Toggle wwitch settings for the PCD110X models.

Toggle Switch Setting for the PCLPD100XHP Models

The PCLPD100XHP control box, located inside the fan housing, has three separate adjustments - refer to instruction and operation manual (IOM) for settings.

Toggle wwitch settings for the PCLPD100XHP models.

Toggle Switch Setting for the PCD80XHP Models

refer to instruction and operation manual (IOM) for settings.

Toggle wwitch settings for the PCD80XHP models.

Certifications & Listings

Please see the Submittal of each PCD model for the certified performance data.

  • cETLus Listed (UL 507 standard)
  • ENERGY STAR® qualified
  • HVI Certified
  • CALGreen (Title 24 Compliant)
  • Ecowatt®

Applications

  • Outside Air Solutions
    Improve IAQ through good, better, and best solutions from S&P.
  • Residential Bathroom Exhaust
    Improve IAQ by removing excess humidity, odors, and VOC's from the residential bathroom.
  • Commercial Bathroom Exhaust
    Improve IAQ by removing excess humidity, odors, and VOC's from the commercial bathroom.
  • Local Exhaust
    Local demand-controlled exhaust is intended to remove contaminants from kitchens and bathrooms.
  • Dwelling Unit Ventilation
    Exhaust air at a continuous rate to satisfy code requirements.

Product Specifications

HVI Performance Data


PCD80XHP
Low Speed High Speed
Static Pressure 0.1 0.25 0.1 0.25
CFM 40 36 80 76
Noise (sones) 0.3 1 0.5 1.2
Fan Watts (W) 3.4 5.9 6.1 9.6
RPM 768 1141 883 1187
Efficacy (CFM/W) 16.6 8.7 14.5 9.6
Duct Diameter 4"
Power Rating (V/Hz) 120 VAC/ 60 HZ

Part ID Duct
(IN)		 Speed Airflow (CFM) Sones @
0.1" w.g.		 Frequency
(Hz)		 Voltage
(V)		 Max Power
(Watts)		 Efficacy @ 0.1" w.g.
(CFM/Watts)		 Max Current
(Amps)
0.1" w.g. 0.25" w.g.
PCD110XP 6 Toggle Switch 74.4 73.4 21 60 120 32.4 13.5 0.5
102 100.3 11.1 10.2
130 126 15 9.6
PCLPD100XHP 4 Toggle Switch 50 53 0.6 60 120 23.6 10 0.31
80 81 1 11.43
100 101 1.5 8.33

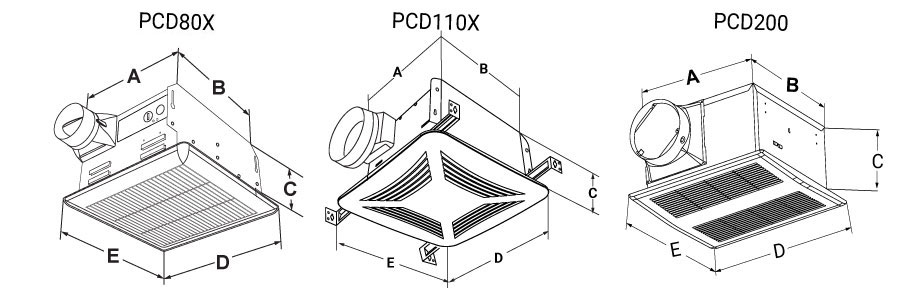

Dimensions

Dimensional drawing for the DC motor models.
Part ID A B C D E Avg. Ship Weight (lbs)
PCD80XHP 9 9 5 3/4" 11 7/16" 11 13/16" 7
PCD110XP 11.375 10.5 7.625 14 13 11
PCLPD100XHP 10.25 10.25 3.375 14 13 7

Dimensions A through E are displayed in inches and rounded to the nearest thousandth of an inch.

Options and Accessories

Image Description Literature
for PCD80XHP
Image of lighted grille kit with LED array. PCVLEDKRD
LED Lighted Grille and Radiation Kit		 Submittal
Image of a radiation damper. PCVRD
Ceiling Radiation Damper		 IOM
for PCD110XP
Image of lighted grille kit with LED array. PCLEDKP
LED Lighted Grille Kit		 Submittal
Image of lighted grille kit with LED array. PCLKP
CFL Lighted Grille Kit
Image of metal grille. PCMGP
Metal Grille
Image of metal grille. PCMRGP
Motion Grille Only
Image of motion sensing lighted grille kit. PCDLMGP
CFL Lighted Grille
Image of metal grille. PCLEDKRDP
LED Lighted Grille and Radiation Damper Kit
Image of metal grille. PCMGKRDP
Metal Grille and Radiation Damper Kit
Image of metal grille. PCMRGRDP
Motion Grille and Radiation Damper Kit
pcrd PCRD
Ceiling Radiation Damper		 IOM
for PCLPD100XHP
LED Lighted Grille Kit PCLPLEDK
LED Lighted Grille Kit		 Submittal
LED Lighted Grille Kit PCLPLEDKRD
PCLP LED Light Grille & Radiation Damper		 Submittal
pcrd PCRD
Ceiling Radiation Damper		 IOM

Wall Control Options

Image Description Literature
Electrical Controls for PCD80XHP, PCD110XP and PCLPD100XHP
Image of a 3-switch control. PC3S
3-Switch Control		 Submittal
Image of a delay timer switch. FLTD-60
Fan/Light Delay Timer Switch		 Submittal
Image of a rotary spring wound timer. SRT-30
Rotary Spring Wound Timer		 Submittal
Image of a electronic push button timer. EPBT-60
Electronic Push Button Timer		 Submittal
Image of a bathroom ventilation control. FT622
ASHRAE 62.2 Bath Fan Ventilation Control		 Submittal
Image of a programmable fan timer. FT247
Programmable Fan Timer		 Submittal

Accessories

Image Description Literature
General Accessories for PCD80XHP, PCD110XP and PCLPD100XHP
Image of a plastic louvered shutter. PER-W
Plastic Louvered Shutter		 Submittal
Image of a aluminum exterior fixed grille. GRA
Aluminum Exterior Fixed Grille		 Submittal
Image of a roof curb. RC
Roof Cap		 Submittal
Image of a round adjustable metal elbow. ME
Round Adjustable Metal Elbow		 Submittal
Image of a duct connector. DC
Duct Connector
Image of a worm clamp. WC
Worm Clamp
