Overview

Features & Construction

  • Quiet operation 1.5 to 2.5 Sones
  • 50 and 80 CFM models
  • 4" duct connector with built-in backdraft damper
  • Robust steel housing
  • Attractive, sturdy grille
  • Thermally protected motor

Certifications & Listings

Please see the Submittal of each PCV model for the certified performance data.

  • cETLus Listed
  • Model PCV80 is ENERGY STAR® qualified
  • HVI Certified
  • CalGreen (Title 24 Compliant)

Applications

  • Residential Bathroom Exhaust
    Improve IAQ by removing excess humidity, odors, and VOC's from the residential bathroom.
  • Commercial Bathroom Exhaust
    Improve IAQ by removing excess humidity, odors, and VOC's from the commercial bathroom.
  • Local Exhaust
    Local demand-controlled exhaust is intended to remove contaminants from kitchens and bathrooms.
  • Dwelling Unit Ventilation
    Exhaust air at a continuous rate to provide fresh air to the dwelling unit.

Product Specifications

HVI Performance Data

Part ID Duct (in) HVI Certified CFM 0.1" SP HVI Certified CFM 0.25" SP Sones @ 0.1" SP Frequency (Hz) Voltage (V) Efficacy @ 0.1" SP (CFM/Watts) Watts @ 0.1" SP Current (Amps)
PCV50 4 50 - 2.5 60 120 1.0 48.9 0.8
PCV80 80 60 1.5 23.8 0.2

Dimensions

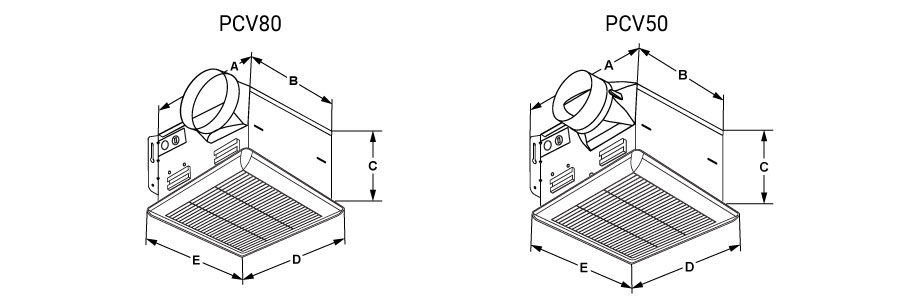

Dimensional drawing for the value series models.
Part ID A B C D E Avg. Ship Weight (lbs)
PCV50 9 9 5.75 11.438 11.813 7
PCV80 9 9 5.75 11.438 11.813 7

Dimensions A through E are displayed in inches and rounded to the nearest thousandth of an inch.

Options and Accessories

Contractor Pack

For convenient installation of specific sizes, the PCV models are available in packs of four with all the parts needed for the fan to be installed by the contractor after the drywall and painting are complete.

Description Literature
Housing Kit The contractor kit includes the fan housing and hanger brackets.
PCV50H
PCV50 contractor pack housing (4-pack).

PCV80H
PCV80 contractor pack housing (4-pack).

Motor and Grille Kit The contractor kit includes the blower assembly and standard grille.
PCV50F
PCV50 contractor pack motor and grille (4-pack).

PCV80F
PCV80 contractor pack motor and grille (4-pack).


Plug-&-Play Grilles

Image Description Literature
Lighted Grille Kit
Image of lighted grille kit with LED array. PCVLEDK
LED Lighted Grille Kit
Submittal
Image of lighted grille kit with CFL light bulb. PCVLK
CFL Lighted Grille Kit
Submittal

Plug-&-Play Modules

Image Description Literature
Image of a humidity sensor Plug-&-Play option. PCHS
Humidity Sensor
SubmittalIOM
Image of a speed control Plug-&-Play option. PCSC
Speed Control
SubmittalIOM

Radiation Damper and Kits

Radiation Damper (PCVRD)

  • 3-hour rating ceiling radiation dampers
  • Ceramic fiber with fiberglass cover fire blanket
  • Roll-formed frame 22 g. galvanized steel
  • cETLus Listed
Kit Radiation Damper Grille Wiring Extender
PCVLEDKRD PCVRD PCVLEDK

Legend = Included / = Not Included

List of Products

Image Description Literature
Radiation Dampers
Image of a radiation damper. PCVRD
Ceiling Radiation Damper
SubmittalIOM
Radiation Damper Kits
Image of a radiation damper. PCVLEDKRD
Ceiling Radiation Damper Kit with PCVLEDK


Wall Control Options

Image Description Literature
Image of a 3-switch control. PC3S
3-Switch Control
Submittal
Image of a delay timer switch. FLTD-60
Fan/Light Delay Timer Switch
Submittal
Image of a rotary spring wound timer. SRT-30
Rotary Spring Wound Timer
Submittal
Image of a electronic push button timer. EPBT-60
Electronic Push Button Timer
Submittal
Image of a bathroom ventilation control. FT622
ASHRAE 62.2 Bath Fan Ventilation Control
Submittal
Image of a programmable fan timer. FT247
Programmable Fan Timer
Submittal

Accessories

Image Description Literature
Image of a plastic louvered shutter. PER-W
Plastic Louvered Shutter
Submittal
Image of a aluminum exterior fixed grille. GRA
Aluminum Exterior Fixed Grille
Submittal
Image of a roof curb. RC
Roof Cap
Submittal
Image of a round adjustable metal elbow. ME
Round Adjustable Metal Elbow
Submittal
Image of a duct connector. DC
Duct Connector

Image of a worm clamp. WC
Worm Clamp
